OptiMate O-108 3300mA USB Charger With Standby Mode
SKU: 4-O-108
By OptiMate
£43.00
Charge your phone, GPS, camera & tablet with your weatherproof charger on your motorcycle or up to 150cm away from 12V supply.

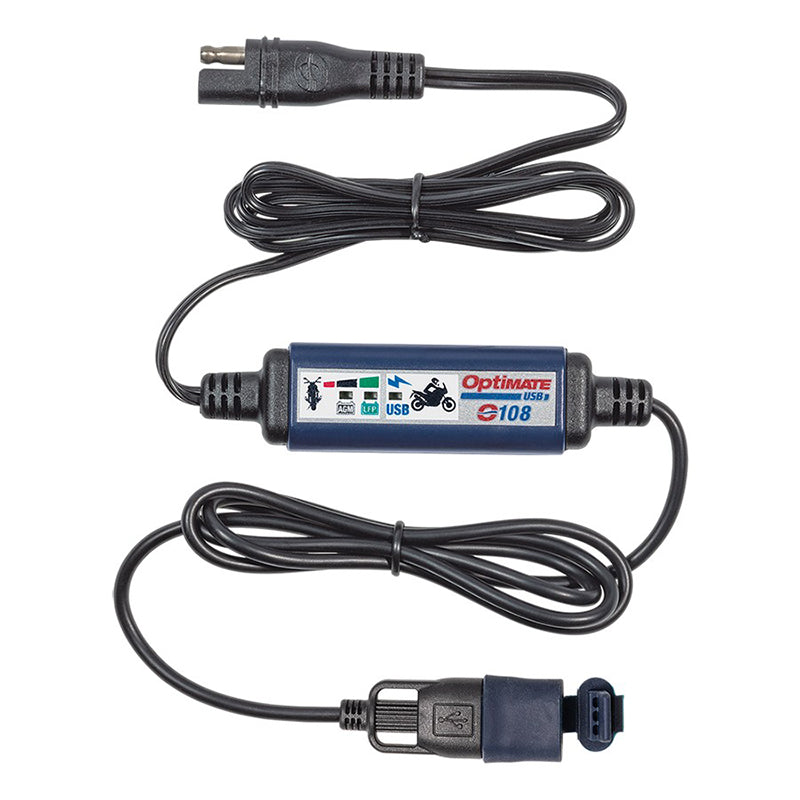

The sealed in-line battery to USB 3300mA charger with 150cm (60″) of cable, delivers safe and fast USB charging of any device mounted outside on the handlebar or inside your tank or pannier. The cable can be routed wherever USB charging is needed.
The USB socket is shrouded for added protection and the body of the connecter has loops to make it easy to cable tie into position (cable ties not included).
The charger unit allows for easy visual AGM or LiFePO4 battery monitoring and the built in protection shuts off power to the charger to preserve your battery.
The charger can be directly connected to SAE terminals if already fitted on your bike or add the optional 50cm, 4-O-01 SAE to M6 eyelet cable to connect directly to your battery or accessories circuit.
• Connects to battery lead with industry standard SAE 2-pin connector with Inline seal to make the 12V connection weatherproof
• Charges 1x USB device with up to 3300mA current available
• Charge current adapts to connected device for safe recharging.

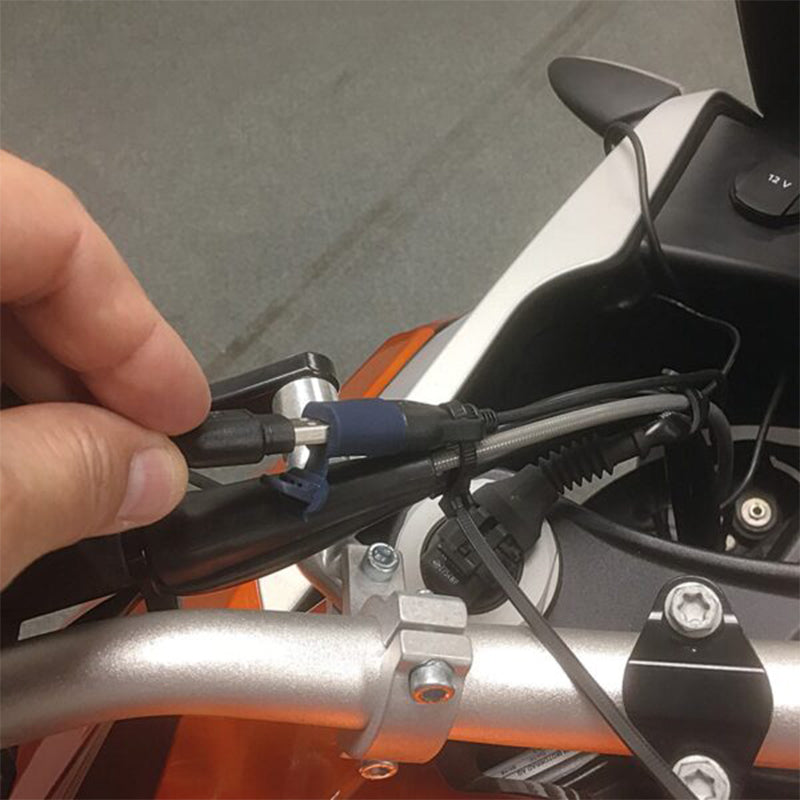

• Weatherproof USB charge port easily cable-tied to handlebar, strut or even brake/clutch cable.
• Shroud seals against inserted USB cable for charging in any weather!
• Built in protection turns off USB charging & prevents your parked vehicle’s LiFePO4 or AGM battery from draining.
• Monitors and displays parked vehicle’s battery status – Indicates battery is ‘start ready’ at the blink of an LED.

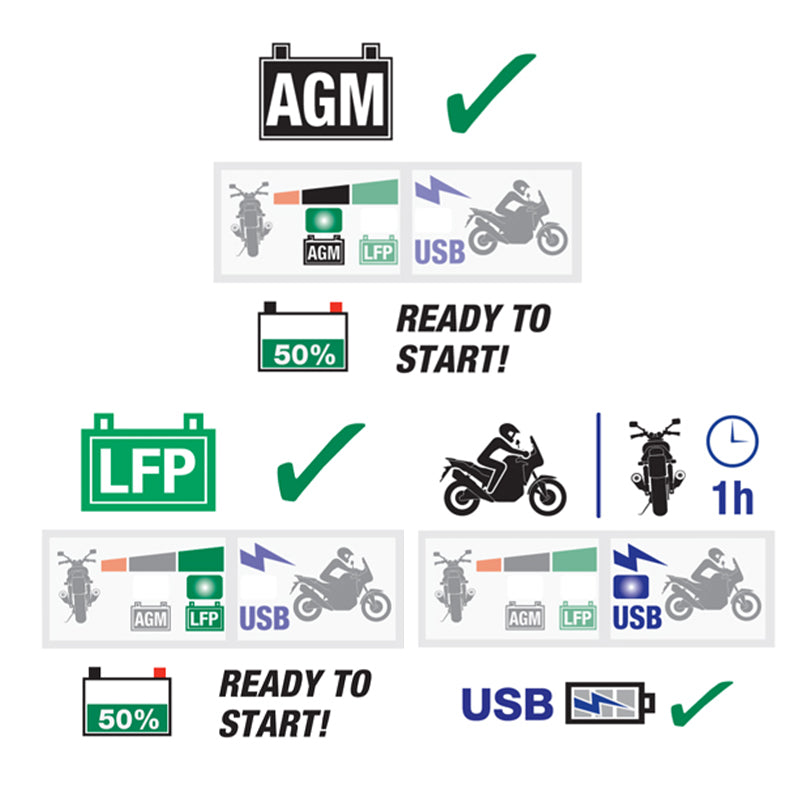

Operation (Voltage):
• USB ON - 13.3V to 18V – unlimited USB output, USB LED on. Delivers USB power when vehicle engine is charging battery.
• USB 1 HOUR - 12.4V to 13.3V – 1 hour USB output, USB LED on. Standby mode after 1 hour or voltage < 12.4V.
• STANDBY MODE – Monitoring voltage, turns back on if vehicle battery voltage increases above 13.3V.
• AGM / LFP MONITOR - LED blink every 5 seconds if battery charge ≥ 50% , sufficient to start vehicle engine.
• LED LFP: 13.1V to 13.3V.
• LED AGM: 12.4V to 13.1V.
• NO LED < 12.4V.
• OFF ≤ 9V
